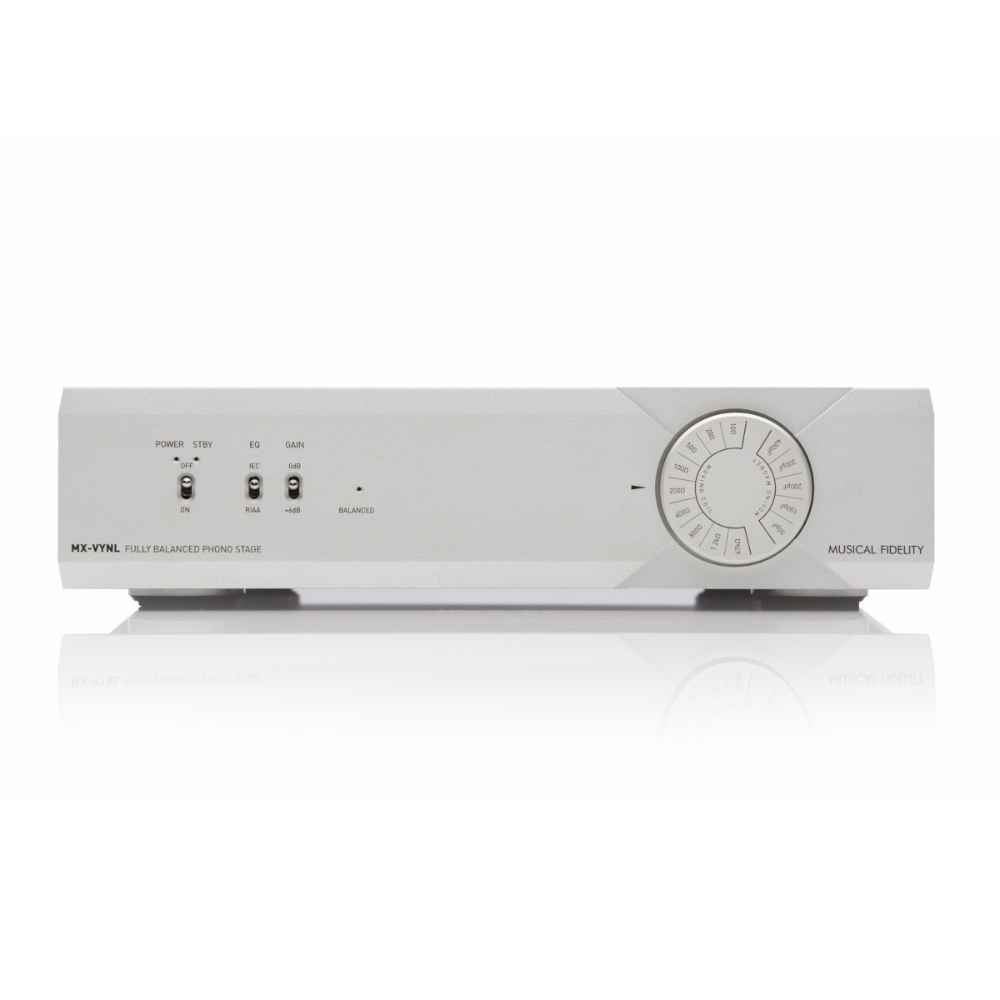

Musical Fidelity MX-VYNL Phono Stage

Musical Fidelity MX-VYNL Phono Stage

$1,199.00 CAD
$1,199.00 CAD
Top Deal! Contact for Pricing
This item ships FREE across Canada!

Special Order
  • Free Shipping
  • Low Price Guarantee
  • Certified Warranty

The MX-VYNL is a fully balanced, very high performance phono stage, able to operate with virtually any moving coil or moving magnet cartridge. With both traditional RCA inputs and our unique XLR fully balanced connection the MX-VYNL can be connected to 2 turntables simultaneously.

The MX-VNYL offers a wide range of input impedance settings for moving coil cartridges as well as several capacitance settings for moving magnet units. Unlike many of our competitors units the MX-VYNL allows easy adjustment of these settings while playing. This allows easy experimentation and tuning to find the optimum setting for all your equipment.

The MX-VYNL also includes our renowned RIAA correction that offers extremely accurate results to beyond 80kHz. That may sound extreme, but there is a good deal of information above 20 kHz that needs correction. If it isn’t corrected, it will show itself as ringing and overshoot.

With both extraordinarily low noise and exceptional overload margin the MX-VYNL can comfortably handle even the most demanding of cartridges and satisfy the most discerning of listeners.

Technical Specifications

Output
4 Volts RMS single ended from RCA sockets
8 Volts RMS balanced from XLR sockets
Performance
Frequency response: RIAA ±0.1dB IEC ±0.1dB
MM:
Channel separation: < -86dB
SNR: >101dB
THD: < 0.007%
XLR input: 5mV / 2.5mV selectable
70mV max (23dB headroom)
MC:
Channel separation: < -83dB
SNR:>98dB
THD: < 0.01%
XLR input: 0.8mV / 0.4mV selectable, 12mV max (24dB headroom)
Inputs
Balanced Mini-XLR
RCA 1 pair RCA sockets
Outputs
Balanced XLR male sockets EIA Standard RS-297-A
RCA 1 pair RCA sockets
Power
Connector: 1.3mm pin DC power jack
Outboard power supply: 12V/500mA DC
Mains voltages 100-240VAC 50-60Hz universal worldwide supply
Consumption < 8 watts
Weight
Weight (unpacked / packed): 1.9Kg / 2.4 Kg
Dimensions
Width 220 mm (8⅔”)
Height (including feet) 53 mm (2”)
Depth (front to back) 215 mm (8½”)
Included accessories
Mains adaptor
Manual
