Musical Fidelity MX-DAC Digital to Analog Converter

Musical Fidelity MX-DAC Digital to Analog Converter

$999.00 CAD
$999.00 CAD
Top Deal! Contact for Pricing
This item ships FREE across Canada!

Special Order
  • Free Shipping
  • Low Price Guarantee
  • Certified Warranty

After years of patient research and development, we are proud to launch our MX-DAC with DSD. With its technical innovation, superb technical performance and excellent build quality, the new MX DAC offers truly outstanding value for money.

The MX-DAC is a tremendous performer. It has ultra low distortion, very wide bandwidth and low noise. The technical performance of the MX-DAC is on a par with any other DAC at any price. Jitter is about 12pps, s/n ratio is -116dB (‘A’ weighted), linearity is +0.2dB at -116dB, stereo separation is -104dB at 1kHz, frequency response is ruler flat and distortion is 0.00025% at 1kHz and 0.0003% at 20kHz. These technical figures are state-of-the-art and show that our implementation is almost perfect, to ensure completely neutral and accurate digital-to-analogue conversion of any digital input.

The MX DAC has inputs for: 2 x coax (up to 24bit 192 kHz PCM), 2 x optical (up to 24bit 192kHz PCM) and asynchronous USB up to 24bit 192 kHz PCM as well as DSD 64 and DSD 128.

Also, all inputs whether from coax, optical or USB, are processed in the DSD domain. This desirable feature gives a warmth and humanity to the sound that simple digital conversion doesn’t achieve.

The MX DAC has both single ended and balanced outputs.

Technical Specifications

DAC Structure
Sample rate converter: SRC4392 up-sampling data to 192kHz
Digital to Analogue converter: PCM1795 32 bit / 192kHz Multi-bit Sigma-Delta type
Performance
Output Voltage: 2 Volts RMS single-ended (RCA)
Output Voltage: 4 Volts RMS balanced (XLR)
PCM THD: <0.002%
PCM THD (+ noise): <0.003%
DSD THD: <0.003%
DSD THD (+ noise): <0.006%
PCM Frequency Response: –3dB, 2Hz to 90kHz
PCM Frequency Response: –3dB, 2Hz to 40kHz
Channel Separation: -110dB
Capabilities
Coaxial Inputs: S/PDIF up to 24 bit / 192kHz
Optical Inputs: S/PDIF up to 24 bit / 192kHz

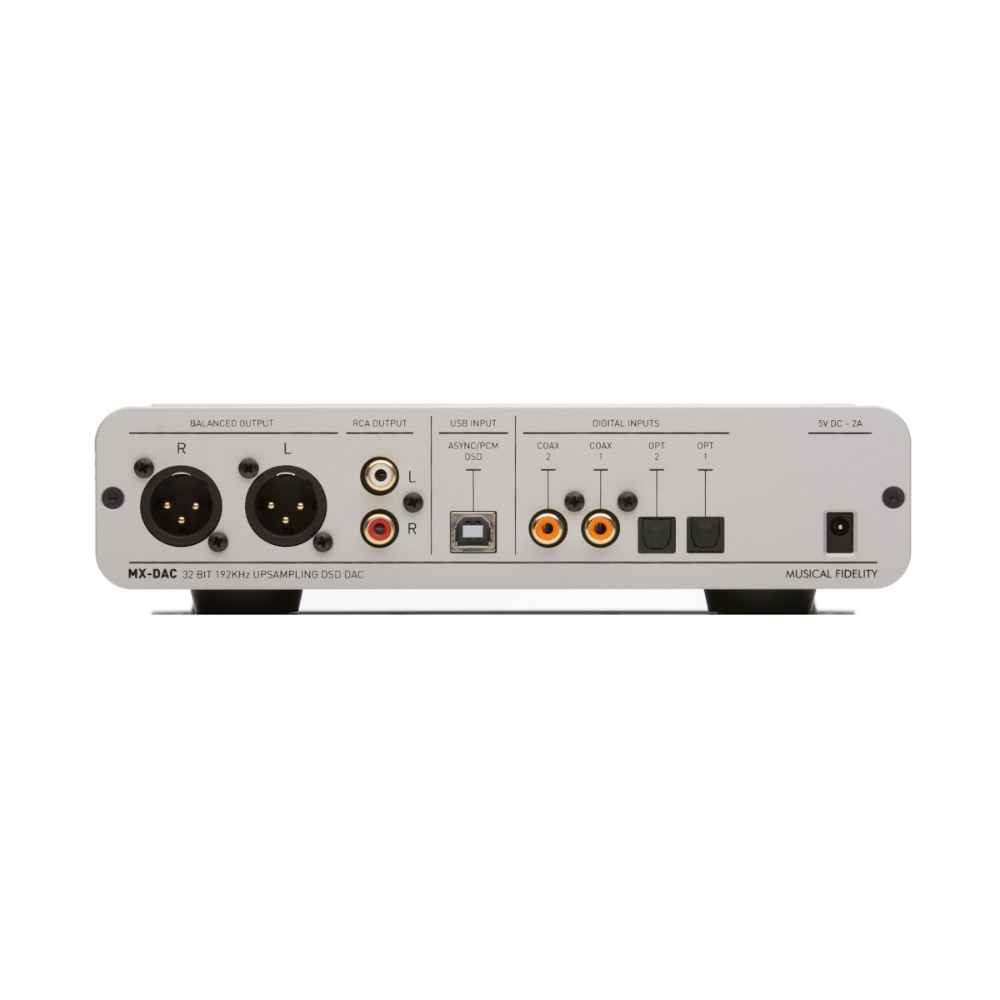

Inputs
2x RCA coaxial connector SPDIF 32-192kHz
(16-24 bit stereo PCM)
2x TOSLINK optical connector 32-192kHz
(16-24 bit stereo PCM)
1x USB type ‘B’ connector
Asynchronous data stream at up to 24-bit/192kHz PCM as well as DSD64 and DSD128
(Determined by source file/computer settings)
Outputs
1x line level RCA (single-ended)
1x XLR Male sockets (balanced) to EIA RS-297-A
General
Dimensions - WxHxD (mm): 220 x 53 x 215
Weight (unpacked / packed): 1.9Kg / 2.4Kg
Power Consumption: <0.25 Watts standby, <1 Watt max.
Supplied Accessories
1x 5v / 2A DC power supply (90-250VAC universal worldwide supply)
Windows driver CD
User manual
